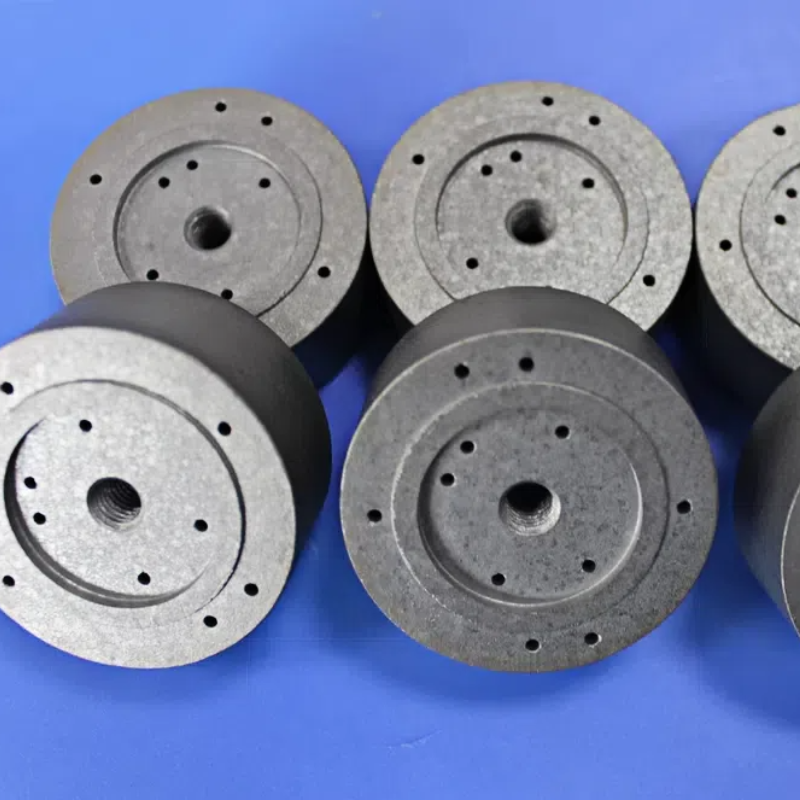

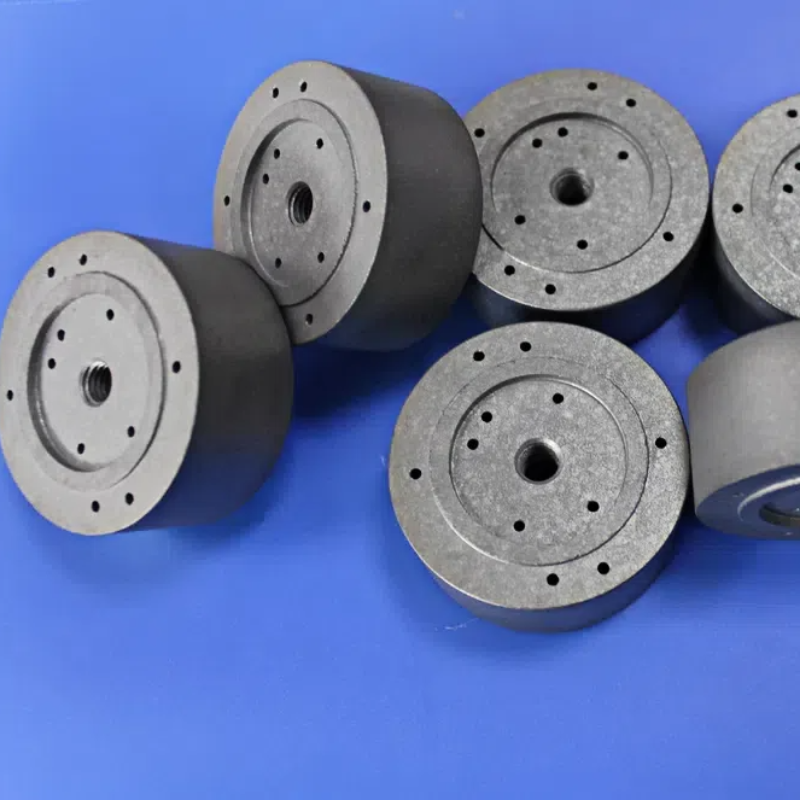

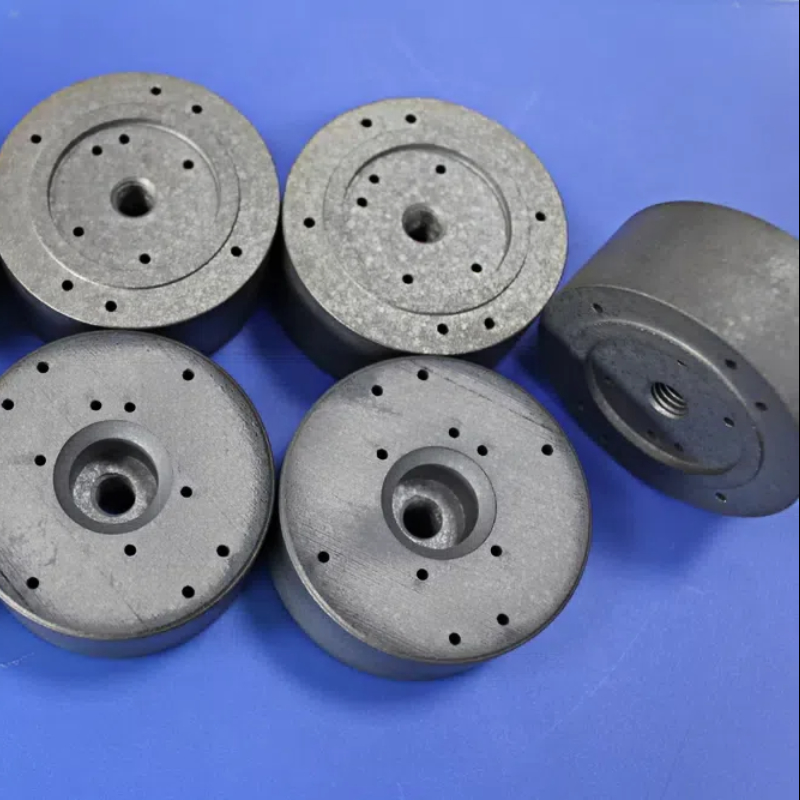

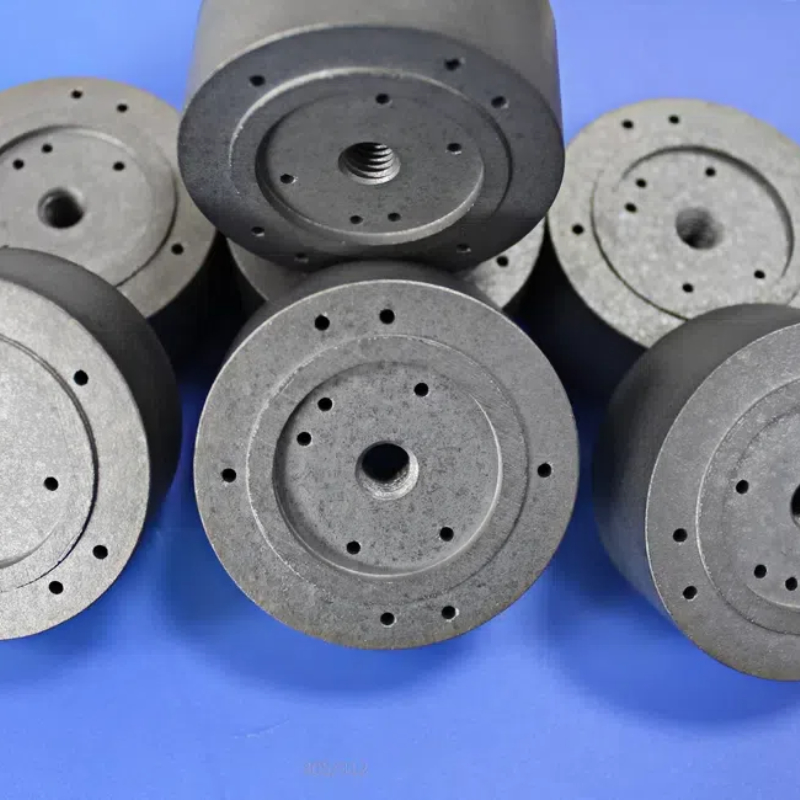

Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material
Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material

Precision Tungsten Carbide Blank with Density ≥14.8g/cm³ for High Density Rotor Core Material

Détails sur le produit:
Lieu d'origine: Zhuzhou, Chine
Nom de marque: Sanxin
Numéro de modèle: Pour les appareils à commande numérique
Conditions de paiement et expédition:
Quantité de commande min: 5
Délai de livraison: 5-25 jours
Conditions de paiement: LC, T/T, Western Union
Contactez
  • Détail Infomation
  • Description de produit

Détail Infomation
Catégorie de carbure: Diverse catégorie Conductivité électrique: 00,1% SCI
Durée de vie: Long Température de trempe: 1400 - 1600°C
Fonctionnalité: Se résistance à l'usure Finition de surface: Lisse, brillant
type de produit: Matériel industriel Application: Outils de coupe, pièces d'usure, outils miniers
taux d'usure: Moins de 0,1 mm³/MJ Matériel: Carbure de tungstène
Précision: 0,001 - 0,01 mm
Mettre en évidence:

Density ≥14.8g/cm³ Tungsten Carbide Blank

,

Precision Rotor Core Material

,

High Density Tungsten Carbide Blank

Description de produit

Precision Blank Density ≥14.8g/cm³ Core Material For Manufacturing Special Motor Rotors
The rotor cavity blank prepared using WC-Ni-based non-magnetic tungsten carbide material, through isostatic pressing and non-magnetic formulation technology, provides a high-quality base material with zero magnetic interference, high density, and near-net-shape forming for subsequent processing of rotors of high-speed motors and precision instruments, solving the problems of magnetic loss and processing deformation in the manufacturing of precision rotors using traditional materials.
Material Science
  • Material Composition: 90% WC + 10% Ni (Non-magnetic formula)
  • Magnetic Properties: Permeability < 1.001, Remanence < 0.02 mT
Physical Properties
  • Density: 14.8-15.1 g/cm³
  • Hardness: 90-92 HRA (Sintered State)
  • Coefficient of Thermal Expansion: 5.3 * 10⁻⁶/K
Processing Characteristics
  • Isostatic Pressing Density Uniformity: > 99%
  • Controllable Sintering Shrinkage: 12.5 ± 0.3%
  • Machining Allowance: 0.5-1.0 mm per side
Blank Specifications
Cavity Types
  • Cylindrical Cavity: Φ10-100mm
  • Stepped Cavity: Multi-level complex structure
  • Irregular Cavity: Custom-made according to drawings
Dimensional Accuracy
  • External Tolerance: ±0.1mm
  • Cavity Position Accuracy: ±0.05mm
  • Blank Weight: 50-2000g
Product Specifications
Parameter Type Standard Range Accuracy Class Inspection Method
Outer Diameter of Blank Φ20-150mm ±0.1mm Digital Calibrator
Cavity Diameter Φ10-120mm ±0.15mm Coordinate Measuring
Height of Blank 20-100mm ±0.2mm Height Gauge Inspection
Weight Deviation ±1% ±0.5% Precision Balance
Density Uniformity >99% >99.5% Water Immersion Test
The data in the table is for reference only; custom drawings are available upon request.
Applications
Aerospace
  • Satellite attitude control flywheel rotors
  • High-speed rotors for aircraft motors
  • Gyro rotors for navigation systems
Medical Equipment
  • MRI equipment drive rotors
  • Centrifuge core rotors
  • Special rotors for medical pumps
Precision Industry
  • High-speed electric spindle rotors
  • Precision instrument balancing rotors
  • Core rotors for special motors
High-end Scientific Research
  • Low-temperature experimental equipment rotors
  • High-vacuum environment rotors
  • Precision measuring instrument rotors
