Aperçu Produitsbec de carbure de tungstène450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity

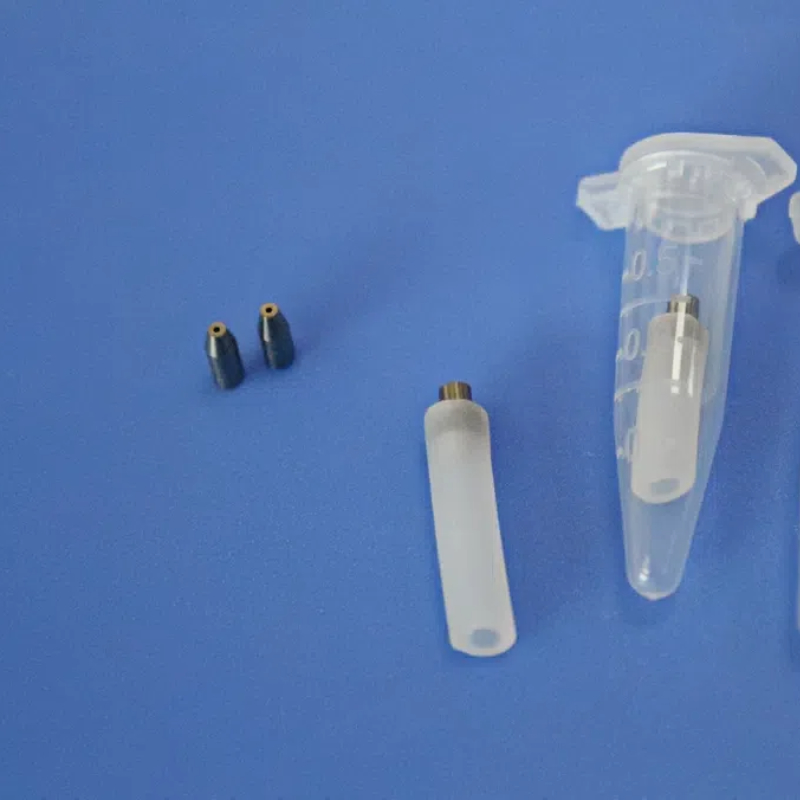

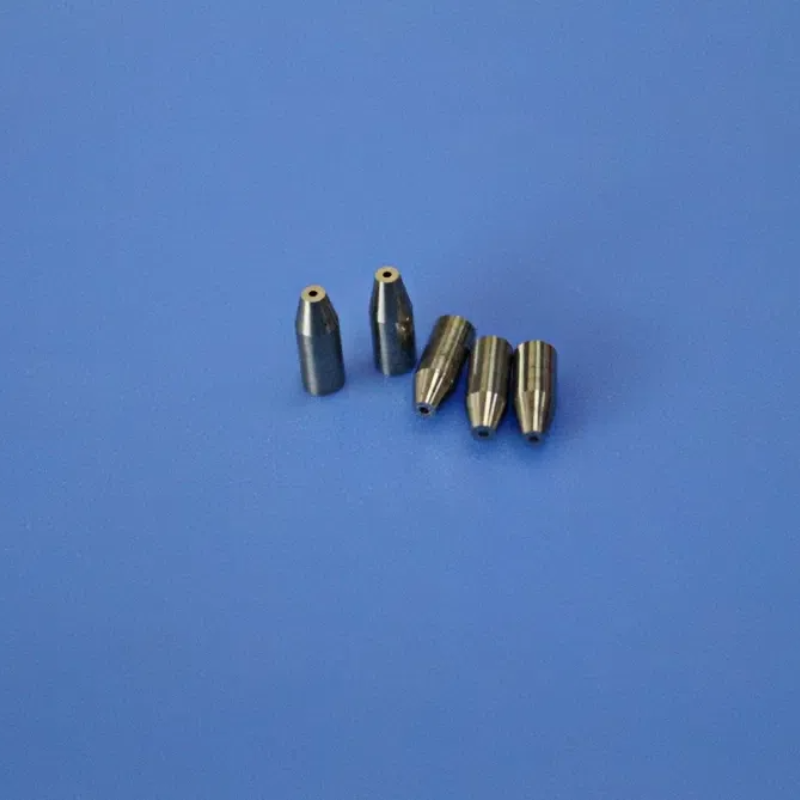

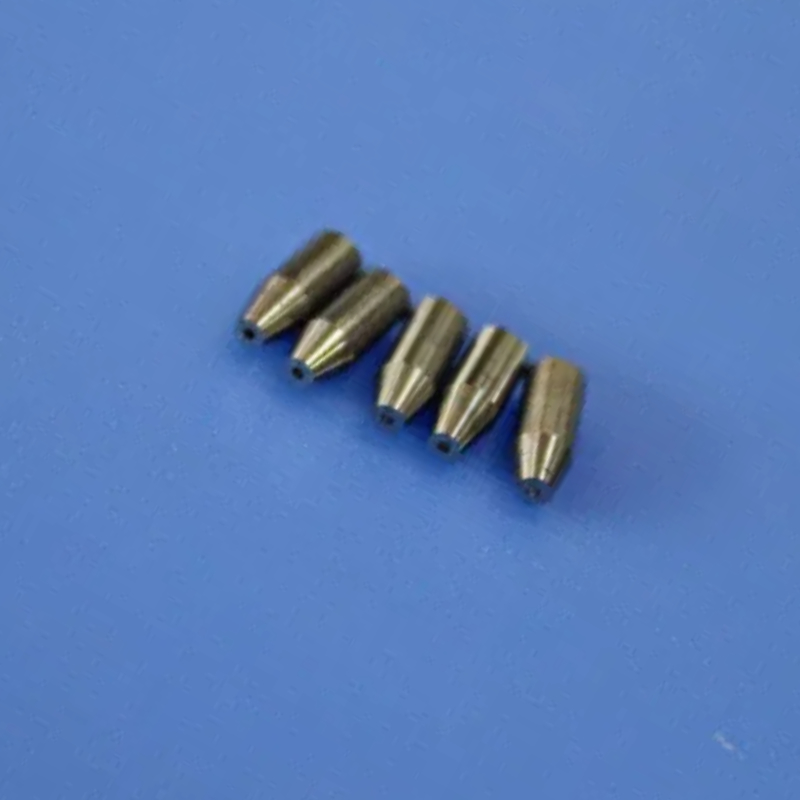

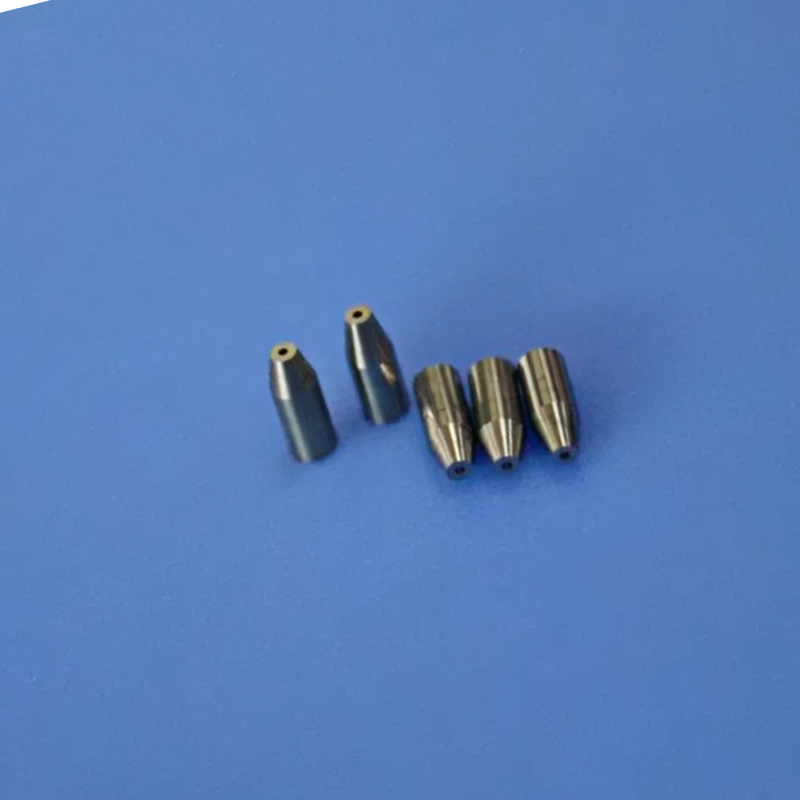

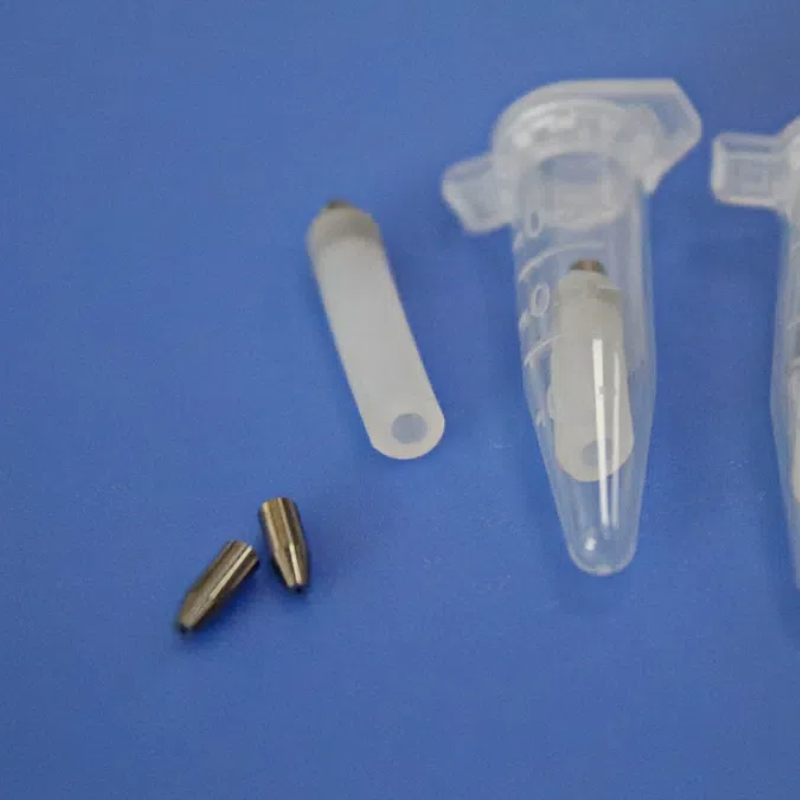

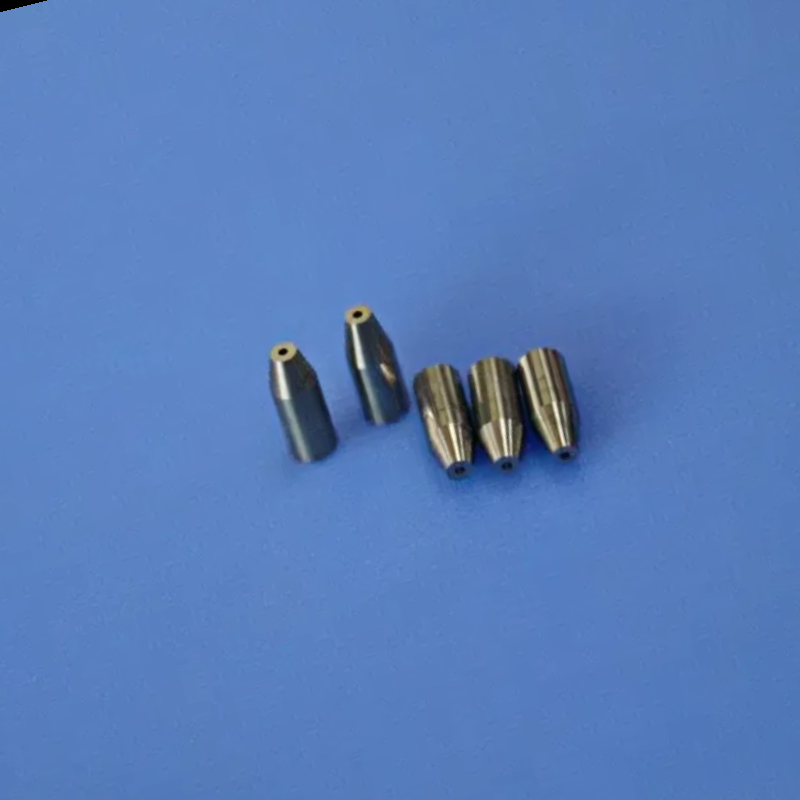

450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity

450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity

Détails sur le produit:
Lieu d'origine: Zhuzhou, Chine;
Nom de marque: Sanxin
Numéro de modèle: SX1266
Conditions de paiement et expédition:
Quantité de commande min: 2
Délai de livraison: 5-25 jours
Conditions de paiement: T / T, Western Union, L / C
Contactez
  • Détail Infomation
  • Description de produit

Détail Infomation
contenu: Carte de travail Taille: OEM accepté
Grade: Yg6, yg6x, yg8, yg10x; Trou intérieur: Personnalisé
Conductivité thermique: 110 W/mK Fabricant: Oui
Avantage: Haute précision bonne résistance à l'usure Marchandise: Nozle à carbure de tungstène
Précision: Haute précision Type de buse: Alésage droit
Finition de surface: Brillant
Mettre en évidence:

450µm tungsten carbide nozzle

,

high thermal conductivity nozzle

,

tungsten carbide processing nozzle

Description de produit

450µm Precision Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
Mirror-finished Flow Channel Treatment 450µm Precision Hard Metal Solder Ball Nozzle
The precision-manufactured 450µm solder ball nozzle, through nano-scale aperture processing and mirror-finished flow channel treatment, completely solves the wear and clogging problems of multi-material nozzles, achieving non-clogging, wear-free, and long-life precision solder ball jetting in the field of microelectronics welding.
Structure
  • Aperture Accuracy: 450µm ± 1µm (Laser Test Certified)
  • Structural Features:
    • Monolithic, one-piece construction (seamless, uncoated)
    • Mirror-polished flow channel (Ra ≤ 0.1µm)
    • Optimized 15° flow cone angle
  • Thermal Management:
    • Thermal conductivity 85 W/m*K
    • Thermal expansion coefficient 4.5*10⁻⁶/K
Performance Comparison
The absolute advantage of integral tungsten carbide nozzles
Performance Specifications Carbide Integral Nozzle Stainless Steel Nozzle Ceramic Nozzle Advantages
Service Life 2,000,000+ cycles 300,000 cycles 800,000 cycles 150% increase in service life
Aperture Stability ±1µm ±5µm ±3µm 300% increase in accuracy
Thermal Deflection ≤0.001mm 0.015mm 0.005mm 5x increase in stability
Maintenance Cost No maintenance required Frequent replacement Regular replacement 70% cost reduction
Core Manufacturing Processes
  1. Precision Drilling Technology
    • Micro-hole EDM
    • Aperture Accuracy ±1µm
    • Roundness ≤0.5µm
  2. Mirror Polishing
    • Diamond Paste Polishing
    • Flow Channel Roughness Ra ≤0.1µm
    • Electrolytic Polishing for Deburring
  3. Quality Inspection System
    • Full Inspection with Industrial Endoscopes
    • Laser Aperture Measurement
    • Flow Testing Verification
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 0
