Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance
Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance

Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance

Détails sur le produit:
Lieu d'origine: Zhuzhou
Nom de marque: Sanxin
Numéro de modèle: SX1250
Conditions de paiement et expédition:
Quantité de commande min: 1
Délai de livraison: 5 à 25 jours
Conditions de paiement: L/C,T/T,Western Union
Contactez
  • Détail Infomation
  • Description de produit

Détail Infomation
Autre nom: barres métalliques de tungstène Matériaux: Tungstène et cobalt vierges à 100%
Le service: Disponible sur mesure ISO (en anglais): Le montant de la garantie est calculé à partir du montant de la garantie.
Surface: Haut poli Forme: Une barre
Décision du procès: C' est acceptable. Stabilité chimique: C' est excellent.
Mettre en évidence:

92HRA Tungsten Steel Piston Shaft

,

Chemical Resistance Tungsten Steel Piston Shaft

,

Chemical Stability Tungsten Steel Piston Shaft

Description de produit

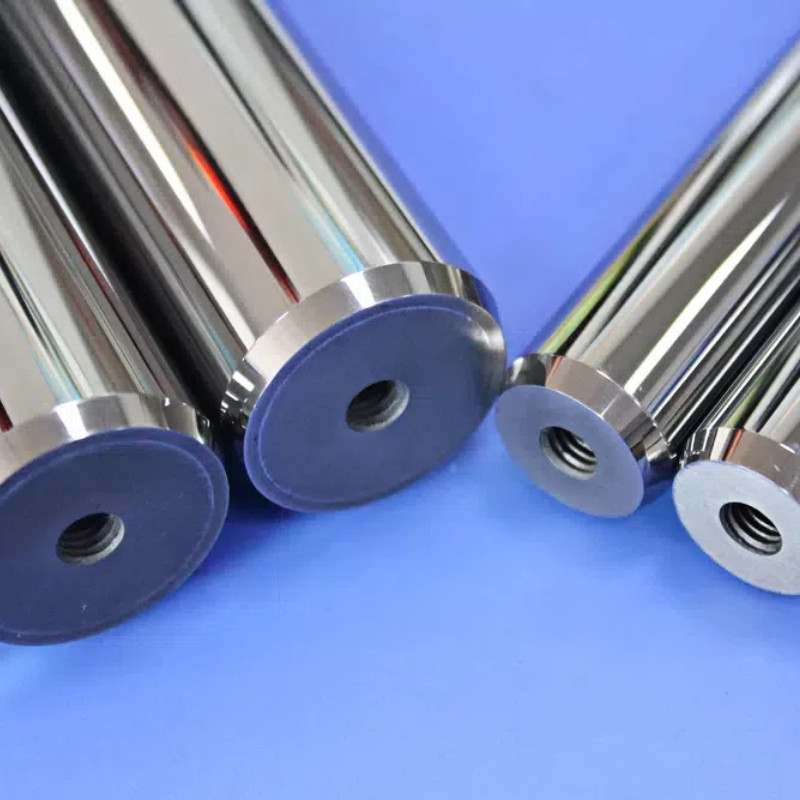

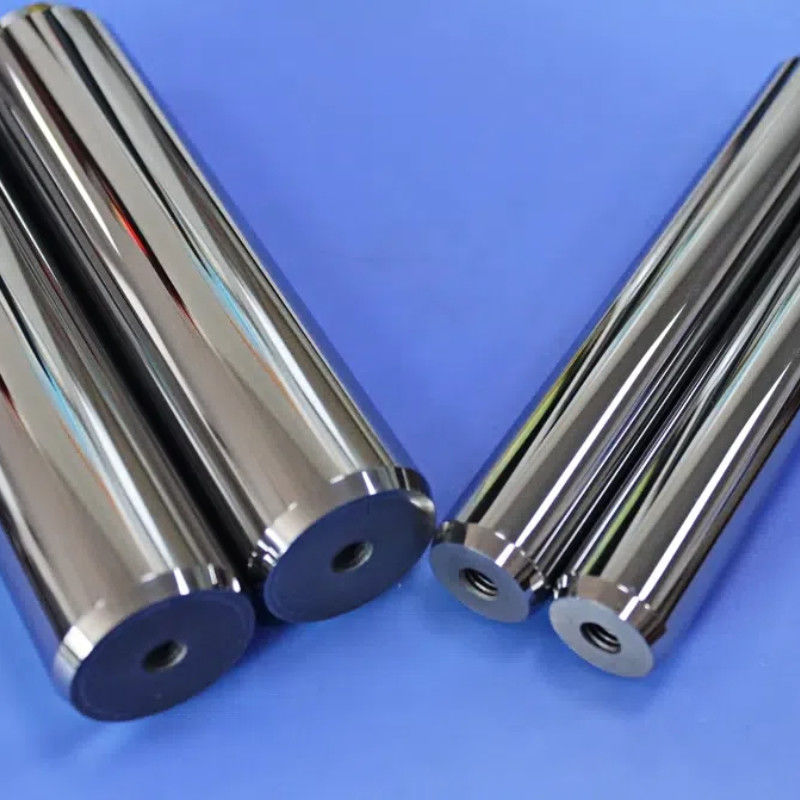

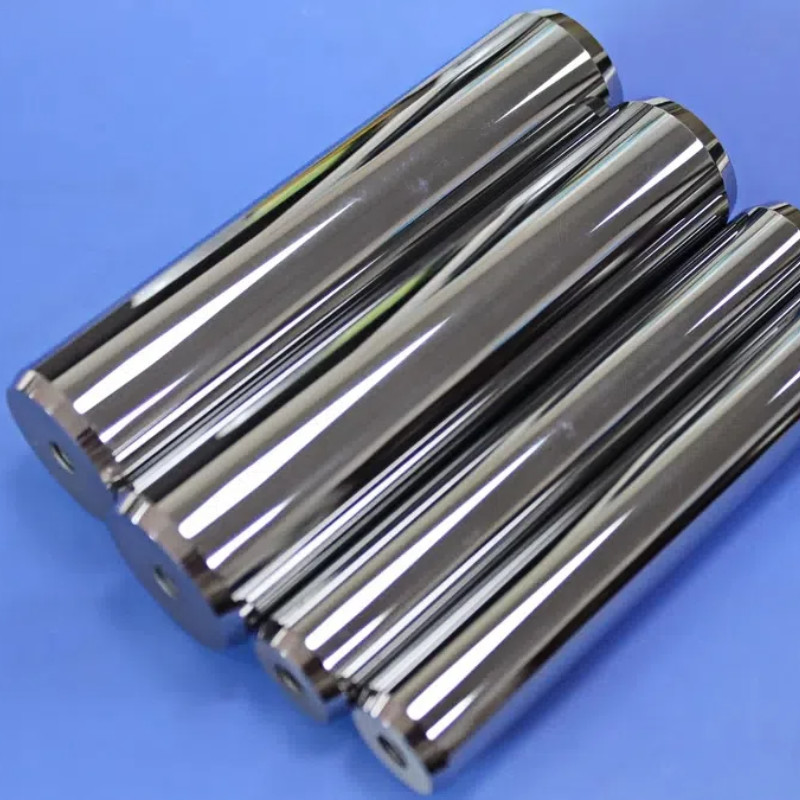

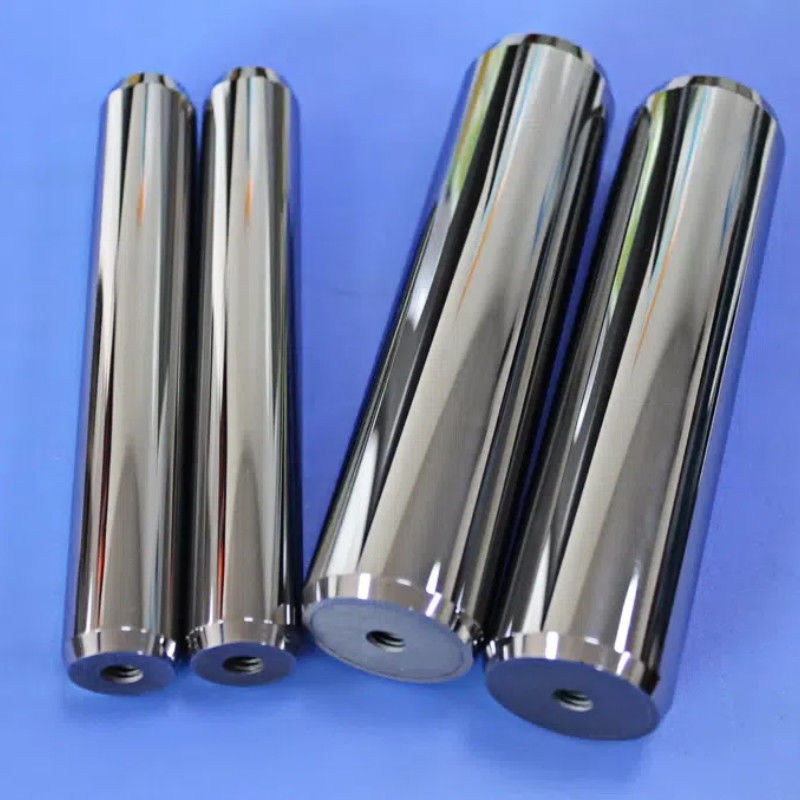

Anti-hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft


Traditional alloy piston shafts Disruptive value of this product
65HRC hardness → micro deformation accumulation under high pressure 92HRA hardness tungsten carbide → 97% reduction in deformation
Thread stress concentration → fracture risk ↑ Rolling reinforced thread → 300% increase in fatigue life
Hydrogen sulfide corrosion → seal failure Nano sealing surface → Leakage rate <0.001mL/min


Anti-Hydrogen Sulfide Corrosion Hardened 92HRA Tungsten Steel Piston Shaft Chemical Stability and Bar for Chemical Resistance 0


Material composition:


▸ Material composition: 94% WC + 6% Co nanopowder (D50=0.5μm)
▸ Sintering process: low-pressure SPS sintering (1200℃/50MPa)
▸ Grain size: 0.8-1.2μm (breaking the 3μm limit of traditional sintering)
▸ Matrix hardness: 92.5HRA


Applications:


► Energy exploration
- Shale gas fracturing compressor: Resistant to 10,000ppm H₂S intergranular corrosion
- Supercritical CO₂ compression: Resistant to 31MPa/110℃ phase change shock

► Chemical extreme environment
- Hydrofluoric acid reactor compressor: Resistant to HF vapor corrosion (＞200℃)
- Liquid chlorine delivery system: No brittle fracture at -34℃ low temperature

► Aerospace field
- Aerospace fuel booster pump: Stable operation at -196℃ in liquid oxygen environment
- Nuclear-grade helium circulation compressor: Resistant to neutron irradiation embrittlement
