Détail Infomation
Description de produit

Détail Infomation
Dimensions:	Personnalisable (diamètre intérieur, diamètre extérieur, longueur)	Résistance aux chocs:	Excellent
Usage:	Manche de guidage, manche de localisation	Taille:	Personnalisable, dessins des clients
Service:	Service personnalisé	Service OEM:	Acceptable
OEM:	disponible	Rugosité de la surface:	1,6 ~ 0,1
forme:	Trapézoïde, cylindre	Température de travail:	-200 ° C ~ + 800 ° C
Résistance à la corrosion:	Excellent	Mots-clés:	douille en carbure de tungstène
Résistance à la corrosion:	Excellent	Emballage:	Forfait d'exportation standard
Mettre en évidence:	Customizable Dimensions Non-Magnetic Alloy Center Ring , Excellent Corrosion Resistance Precision Machined Ring , Precision Machined Tungsten Carbide Sleeve

Description de produit

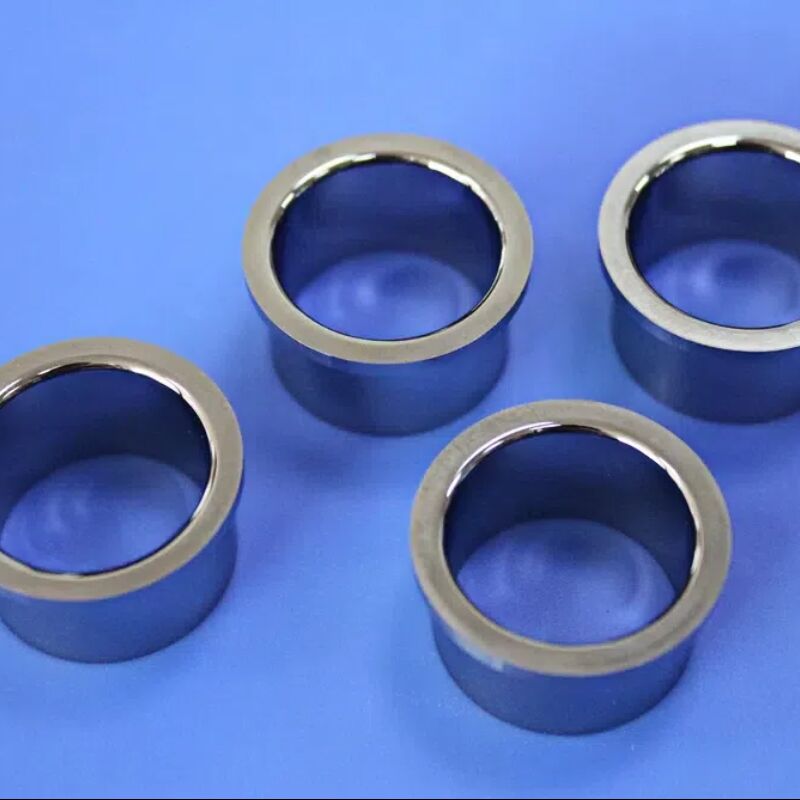

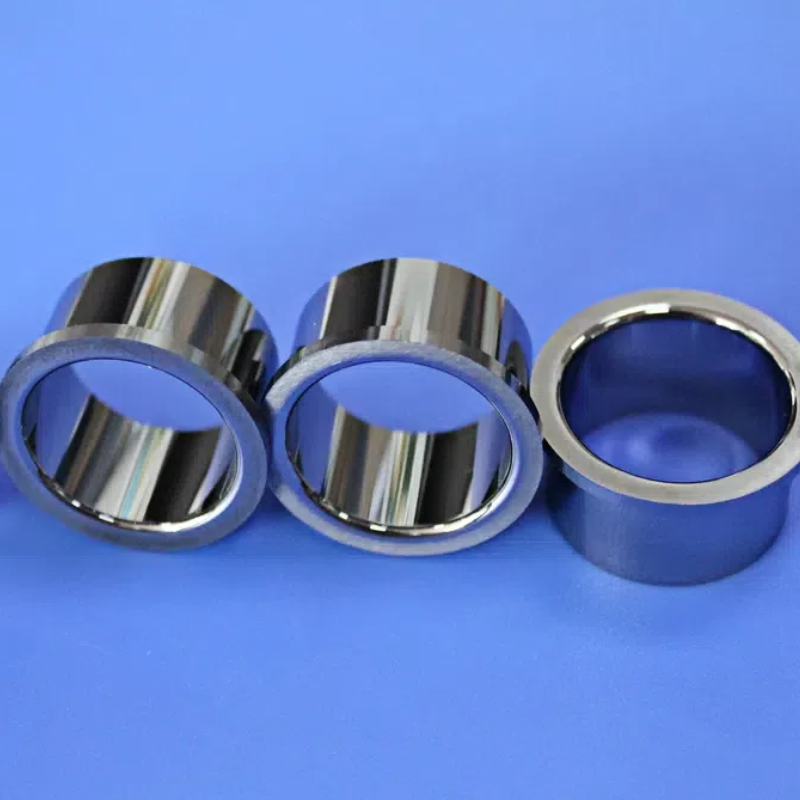

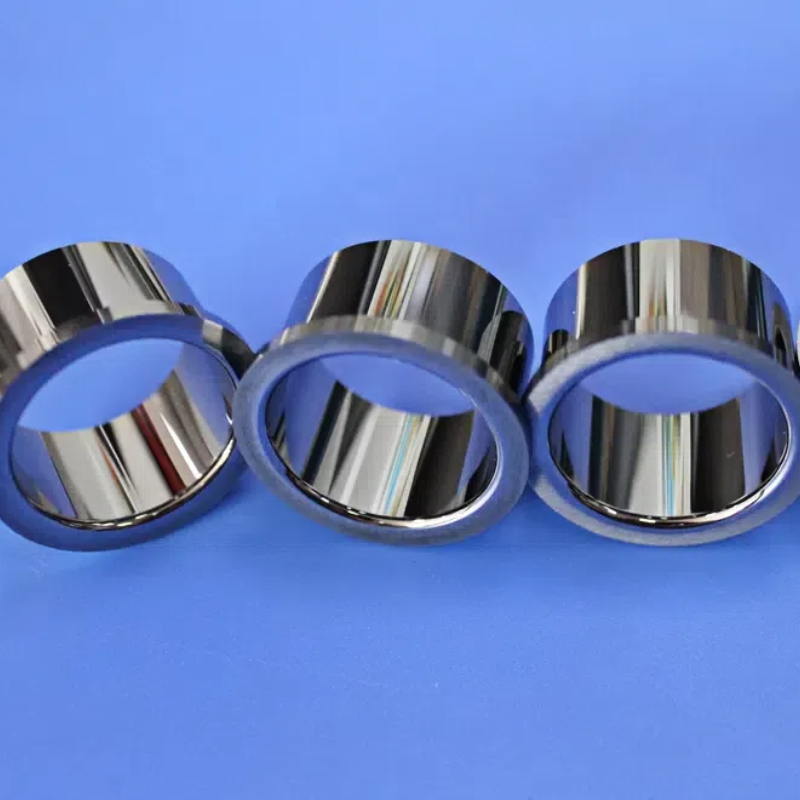

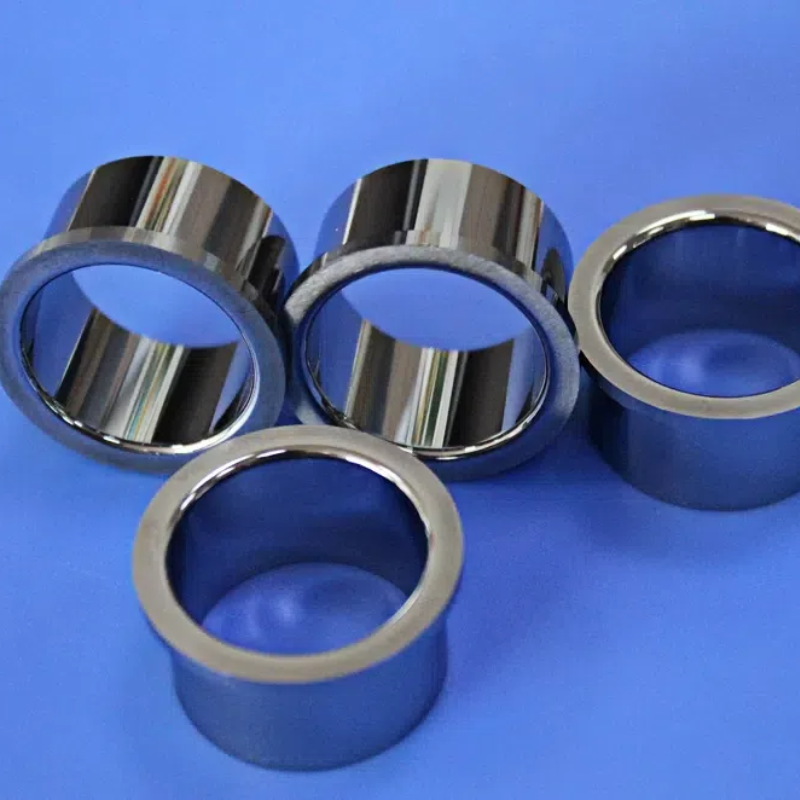

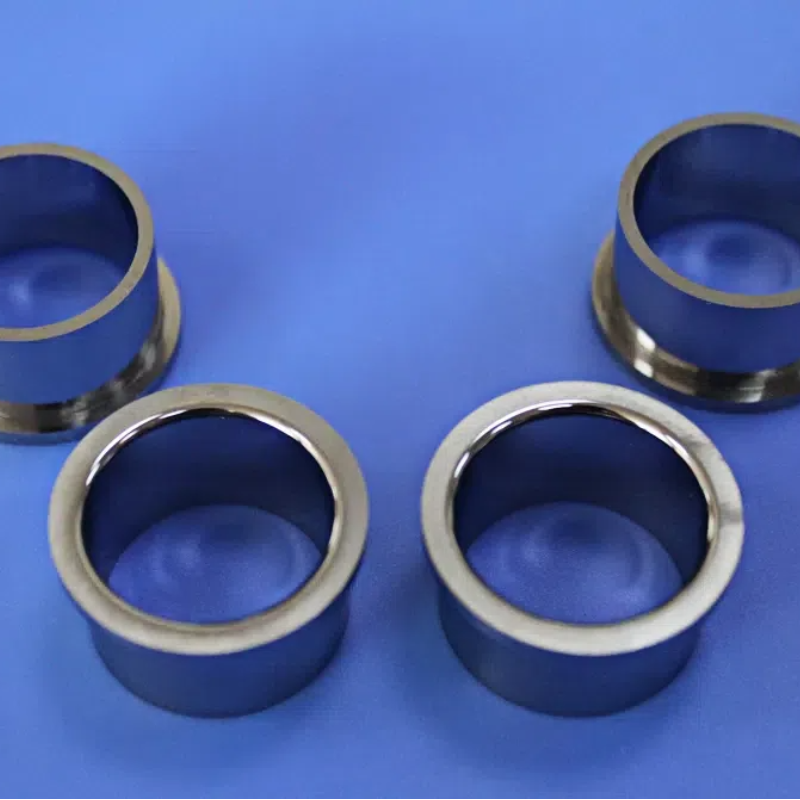

Non-Magnetic Alloy Center Rings

Precision Machined Rings for Shielding, Spacing & Mounting

Our precision-machined center rings offer zero magnetic interference, excellent dimensional stability, and corrosion resistance for use in electronics, medical devices, and research equipment. Custom sizes and materials available.

Why Choose Our Non-Magnetic Rings?

Guaranteed Non-Magnetic Performance: Manufactured from carefully selected copper-nickel, aluminum-bronze, or other non-ferrous alloys, these rings are inherently free from iron and cobalt. They ensure zero magnetic attraction (permeability µ ≈ 1.0) and will not disrupt sensitive magnetic fields.
Superior Machinability & Precision: Unlike brittle alternatives like ceramics, our non-magnetic alloys can be machined to exceptionally tight tolerances with excellent surface finishes. We achieve precise IDs, ODs, and parallelism (±0.005mm standard, tighter on request).
Excellent Corrosion Resistance & Conductivity: Many of our alloy options offer good to excellent resistance to corrosion from moisture, chemicals, and salts. Certain alloys also provide beneficial electrical or thermal conductivity.
Lightweight & Cost-Effective Alternative: Compared to dense tungsten-based non-magnetic materials, our alloy rings offer a favorable strength-to-weight ratio and are often more economical, especially for larger diameters.

Technical Specifications

We provide standard and fully custom-machined rings. Below are our common capabilities.

Parameter	Specification / Standard Offering
Primary Materials	Cupronickel (e.g., C71500), Aluminum Bronze, Non-Magnetic Stainless Steels (e.g., 316L), Other Engineered Non-Ferrous Alloys
Key Properties	Non-Magnetic (µ ≈1.0), Good Machinability, Corrosion Resistant, Electrically Conductive (material dependent)
Standard Diameter Range	Inner Diameter (ID): From 2mm \| Outer Diameter (OD): Up to 300mm
Standard Thickness/Width	From 1mm to 50mm
Standard Tolerances	ID/OD: ±0.02mm \| Thickness: ±0.01mm \| Can achieve ±0.005mm for critical dimensions
Surface Finish	Standard Machined: Ra 1.6 μm \| Fine Machined: Ra 0.8 μm or better
Additional Features	Can be supplied with grooves, threads, holes, or special coatings as per print

Target Applications & Industries

These versatile rings serve as crucial components across a wide range of high-tech fields.

Industry	Typical Use Cases
Electronics & Semiconductor	RF Shielding Gaskets, Vacuum Chamber Spacers, Sensor Mounting Rings within production equipment. Prevents eddy currents and magnetic interference.
Medical & Diagnostic Imaging	Non-Magnetic Hardware, Spacers, and Supports inside MRI and CT scanners. Ensures patient safety and image fidelity.
Aerospace & Defense	Shielding Rings, Conductive Bushings, and Structural Spacers in guidance systems and avionics where magnetic signature must be minimized.
Research & Instrumentation	Sample Holders, Collimators, and Mounting Rings in electron microscopes, spectrometers, and physics experiments.
General Precision Engineering	Insulating Spacers, Alignment Rings, and Wear-Resistant Bushings in any machinery where non-magnetic properties are specified.

Why Source From Us?

Material Expertise: We guide you to the optimal alloy (CuNi, Al Bronze, etc.) balancing non-magnetic properties, strength, corrosion resistance, and budget for your specific case.
Precision Manufacturing Focus: We specialize in turning simple ring specifications into high-precision, ready-to-install components that fit perfectly the first time.
Full Customization & Support: We manufacture to your exact blueprint. Provide a sketch, drawing, or CAD file, and we handle the rest.

Produit Tag:

Détails sur le produit:
Lieu d'origine:	Chine
Nom de marque:	Sanxin
Certification:	ISO
Numéro de modèle:	SX1290
Conditions de paiement et expédition:
Quantité de commande min:	2
Délai de livraison:	5-25 jours
Conditions de paiement:	T/T, L/C, Western Union

Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications

Customizable Dimensions Non-Magnetic Alloy Center Ring

Excellent Corrosion Resistance Precision Machined Ring

Precision Machined Tungsten Carbide Sleeve

pièces de carbure de tungstène

douilles en acier trempé

carbure de pièces d'usure

Séat de soupape à manche en carbure cimenté et noyau de soupape pour l'industrie pétrolière et gazière

Encastrement en carbure de tungstène résistant à la corrosion à haute dureté et de taille personnalisable pour les équipements de forage pétrolier

Miroir Polissage du carbure de tungstène avec une résistance à l'usure inégalée et une résistance à la chaleur supérieure pour les cylindres à piston

OEM Moldes Sleeve de tuyau en acier de haute résistance Nouveau matériau Boussines de carbure cimenté

Cartouche de carbure de tungstène de haute dureté avancée pour machines lourdes

Manchon en carbure de tungstène personnalisé avec une haute résistance à l'usure pour les applications de siège de vanne pétrolière et gazière

Résistance à l'usure excellente pour les applications lourdes

Tuyau en carbure de tungstène non magnétique avec une dureté HRA 90-92 et des spécifications dimensionnelles de précision pour usage industriel

Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd
